FEATURES

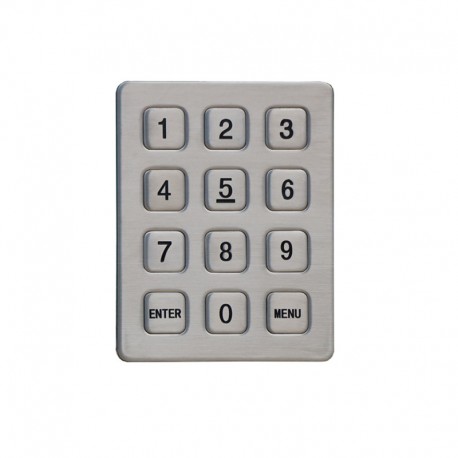

1.12 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 2 function keys.
2.Keys are good touch feeling and accurate data input without any noise.
3.Easy to install and maintenance; flush mount.
4.Our panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
Warning: Last items in stock!
Availability date:
Brand Name: SINIWO Model Number: B720 design: 3X4 /4X3 layout material: stainless steel Application: access control system Key Mechanism: Metal dome Key Travel: 0.45mm Certificate: CE ,ISO9001 Vandal resistance: yes Waterproof grade: IP65 Vandal proof grade: IK09 Warranty: 1 year
1.12 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 2 function keys.
2.Keys are good touch feeling and accurate data input without any noise.
3.Easy to install and maintenance; flush mount.
4.Our panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
5.Fonts and pattern of key surface can be customized.
6.The keypad is waterproof, anti-drilling and removal-proof.
7.The keypad uses double-sided PCB and mental dome; Good contact.
8.The labels on the buttons are made by etching, and fill in high strength paint.
1.Surface treatment of frame and keys: satin-finished or mirror polish.
2.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.
3.Labels on the buttons can be customized by etching.
self-service library |
self-service kiosk |
CNC machine |
household applications |
oiling machine |
charge spot |
industrial telephone |
ATM |
access control |
ticket machine |
vending machine |
medical facility |
security system |
fingerprint attendance machine |
|
Model number |
B720 |
Defend Grade |
IP65 |
Keys |
12 keys |
Vandal resistant |
IK09 |
Electrical lifetime |
> 5 years |
Contact resistance |
200 ohm (max) |
Current Rating |
appr. 30mA |
Power supply |
+ 5V +/- 5% |
Led color |
option |
G.W. |
0.19kg approx |
Dimensions |
93.5mm *72.5mm*6.1mm |
Frame/keys materials |
Stainless steel |
life span |
≥2 million |
Elasticity of key |
2.5-3N |
Key travel |
≤100Ω |
Atmospheric pressure |
60-106Kpa |
Operate Temperature |
-40℃~+85℃ |
Travel distance |
0.45mm |
General Packing Details:
420*350*115mm
60pcs/ctn
GW:15.5KG/ctn
Customized package requirements are also available.
